The Role of Silica Fume in Concrete：Optimizing Microstructure, Enhancing Macro Performance

_________________________________________________________________________

I. The Central Role and Value of Silica Ash in Concrete Production

In concrete production, the core function of silica fume lies in refining the microstructure and enhancing macroscopic performance. Its value extends throughout both the hydration and hardening process and the long-term service life of concrete. The mechanism can be elaborated from four key perspectives:

1. Densified Matrix: Filling voids to build “compact concrete”

Silica fume has an extremely fine particle size (average 0.1–0.3 μm, only 1/50–1/100 that of cement particles). Acting as an ultrafine filler, it precisely fills the microscopic voids between cement hydration products (such as C–S–H gel) and even penetrates the gaps among cement grains.

This micro-aggregate effect can reduce the concrete porosity by 15%–30%, effectively minimizing pathways for water and aggressive ions (e.g., chloride ions). As a result, the impermeability and frost resistance of concrete are significantly improved — a critical advantage for underground structures, marine works, and other corrosion-prone environments.

2. Strength Enhancement: Dual mechanism — breaking the strength limit

Silica fume enhances strength through a combined physical filling and chemical reaction mechanism, making it a key supplementary material for producing ultra-high-strength concrete (C80 and above).

-Chemical contribution:

Reactive SiO₂ in silica fume reacts with Ca(OH)₂ (calcium hydroxide, a weak phase) generated during cement hydration, forming additional high-strength, stable C–S–H gel. This secondary pozzolanic reaction effectively converts weak zones within the matrix into dense, load-bearing structures.

-Physical contribution:

The densified microstructure minimizes internal stress concentration, making crack initiation under load more difficult. Compressive strength can increase by 20%–50%, and flexural strength by 15%–30%.

3. Durability Improvement: Blocking corrosion and extending service life
Thanks to its dense microstructure, silica fume comprehensively enhances concrete durability against various environmental attacks:

-Chemical resistance:

By reducing the ingress of chloride, sulfate, and other aggressive ions, silica fume slows down steel corrosion and carbonation. Concrete in saline–alkali or chemical environments can achieve 2–3 times longer service life.

-Freeze–thaw resistance:

With fewer and finer internal pores, the ice-crystal pressure during freeze–thaw cycles decreases sharply. The freeze–thaw grade can increase from F100 to F300 or higher (withstanding over 300 cycles without damage).

-Abrasion and erosion resistance:

The dense surface and high strength reduce material loss under hydraulic scour (e.g., hydraulic structures) or mechanical wear (e.g., industrial floors) by 40%–60%.

4. Workability Adjustment: Balancing flowability with the aid of superplasticizer

Due to its very high specific surface area (about 20–25 m²/g, 10–20 times that of cement), silica fume has a strong water demand. Direct addition often causes high viscosity and poor flowability, or even stiff mixes. However, when combined with a high-range water reducer, its dispersion is activated:

-Dispersed system formation:

Silica fume particles adsorb superplasticizer molecules, forming a stable dispersion and preventing agglomeration. This simultaneously reduces bleeding and segregation.

-Enhanced workability:

Properly dispersed silica fume concrete can achieve slump values above 200 mm with excellent water retention, meeting the demanding requirements of pumped concrete applications.

II. Influence of Silica Fume on Workability: A Dual-Effect Mechanism

The impact of silica fume on workability is bidirectional, depending on dosage, dispersion degree, and compatibility with the superplasticizer. Evaluation should consider four major parameters — flowability, water retention, cohesiveness, and setting time - in relation to its micro-characteristics (high surface area and strong water absorption).

1. Effect on Flowability

“Decrease first, then stabilize” - requires superplasticizer synergy
Flowability, the most direct indicator of workability, shows a strong dose-dependent relationship with silica fume:

-Without superplasticizer:

Flowability decreases sharply. With a surface area of 20–25 m²/g, silica fume absorbs a large amount of free water, and its ultrafine particles easily agglomerate into “micro lumps.” Tests show that adding only 5% silica fume can reduce slump from 200 mm to below 120 mm; at 10% dosage, the mix may become too stiff for pumping or vibration, and even cause “balling” or mixer blade adhesion.

-With superplasticizer (e.g., polycarboxylate):

The superplasticizer molecules adsorb on silica fume particles, inducing electrostatic repulsion and steric hindrance, dispersing agglomerates and releasing bound water. Consequently, mixes containing 5%–8% silica fume can achieve slump values of 180–220 mm, with improved slump retention — after 1 hour, slump loss may remain below 20%, ideal for long-distance pumping and mass pours (e.g., high-rise cores).

2. Effect on Water Retention and Bleeding

“Strong retention + low bleeding” — solving site-level pain points
Silica fume’s ultrafine nature makes it a natural water-retaining agent, improving water retention and reducing bleeding:

-Enhanced water retention:

Acting as a "micro filtration network", silica fume fills fine voids between cement grains, preventing upward migration of free water. This mitigates surface dusting and cracking caused by early drying. The surface hardness of 28-day specimens can increase by 15%–20%, particularly beneficial for pavements and bridge decks.

-Reduced bleeding:

Bleeding often forms weak interfacial "water films" beneath coarse aggregates, which later become crack initiation points. Silica fume reduces bleeding rate from 3%–5% down to below 1%, sometimes achieving zero bleeding. In pile foundations, this ensures higher integrity — raising qualified core ratios to over 98%.

3. Effect on Cohesiveness

"More cohesive, no segregation" — adaptable to complex placements
Cohesiveness refers to a mix’s resistance to segregation between mortar and aggregate. Silica fume enhances this property via physical interlocking and matrix binding:

-Positive effect:
Uniformly dispersed silica fume forms a network structure with C–S–H gel, tightly wrapping aggregates and preventing segregation even in high-drop or sloped placements (e.g., dam or roof pours). Unlike ordinary concrete, which tends to segregate from >10 m drops, silica-fume-modified mixes remain uniform even when poured from 20 m or more.

-Potential issue:
Excessive dosage (>10%) or poor dispersion can cause excessive viscosity, reducing flowability and increasing compaction difficulty — especially in densely reinforced zones (<100 mm spacing). Thus, for such components, the recommended dosage is 5%–6%, paired with a retarding superplasticizer to lower viscosity.

4. Effect on Setting Time

'Fine-tuning effect' — dosage and temperature dependent
The influence of silica fume on setting time is moderate but varies with dosage and ambient temperature, requiring on-site adjustment.

-At normal temperature (20–25°C):

Setting is slightly accelerated. Reactive SiO₂ promotes early hydration of C₃S, generating more C–S–H gel. The initial set may shorten by 30–60 minutes, and final set by 60–90 minutes. For example, a mix with 8% silica fume may set in 5–5.5 hours instead of 6 hours, requiring caution under hot weather to prevent cold joints.

-At low temperature (5–10°C):

Both cement hydration and the pozzolanic reaction slow down, extending the setting time by 1–2 hours. Without thermal protection (e.g., insulation blankets or steam curing), early strength development can lag. Thus, formwork curing and maintaining a minimum curing temperature above 10°C are essential in cold conditions.

III. Summary

Silica fume is not merely a supplementary material — it is a performance catalyst that transforms concrete’s internal structure and long-term behavior. When properly proportioned and combined with an efficient superplasticizer system, it enables the production of high-strength, low-permeability, and durable concretes suitable for the most demanding civil and infrastructure projects worldwide.

1.Unlocking the Power of Silica Fume in Concrete Innovation

In the pursuit of stronger, denser, and more durable concrete, silica fume stands out as one of the most powerful and versatile materials in modern construction chemistry.

With an ultra-fine particle size and high pozzolanic activity, silica fume not only densifies the microstructure but also enhances strength, impermeability, and long-term durability.

Its dual action-physical filling + chemical reaction-enables the production of ultra-high-performance concrete (UHPC) used in bridges, tunnels, marine works, and high-rise cores.

2. Key benefits include:
✅ Up to 50% higher compressive strength
✅ 2–3× longer service life in harsh environments
✅ 40–60% less surface wear under abrasion or flow
✅ Zero bleeding & improved pumpability with superplasticizer synergy

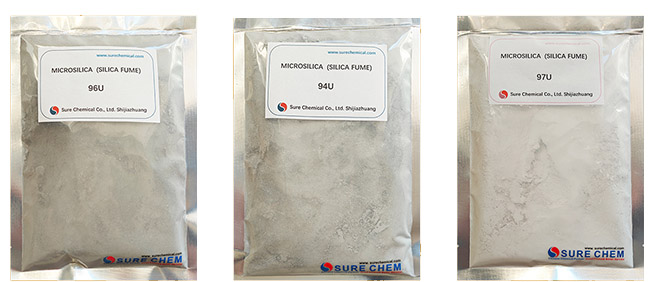

Silica fume doesn’t just modify concrete-it redefines performance from the micro to the macro level. When paired with a high-range water reducer, it delivers the ideal balance of flowability, cohesion, and durability-essential for the next generation of sustainable concrete solutions. At SURE CHEM, we are committed to advancing concrete technology worldwide with high-reactivity silica fume and innovative admixture systems designed for modern construction challenges.Let’s build stronger, longer-lasting, and more sustainable structures-together.
