Essential Questions and Answers in the Application of PCE

_________________________________________________________________________

1. Polycarboxylate-based high-performance water-reducing agents differ from naphthalene-based high-efficiency water-reducing agents in that：

First, it features diverse and adjustable molecular structures; second, it further concentrates and enhances the advantages of high-efficiency water-reducing agents, and achieves green and pollution-free production processes.

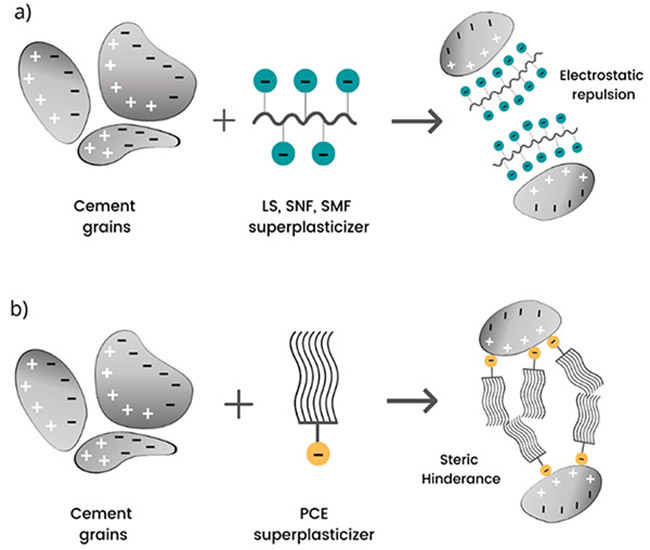

From a mechanism of action perspective, Polycarboxylate superplasticizers have a comb-like molecular structure.

The strong polar anionic "anchoring" groups in the main chain adsorb onto cement particles, and the outward-extending comb-like structure supported by numerous branches provides ample spatial arrangement for further dispersion of the cement particles. Compared to the double-layer electrostatic repulsion of naphthalene-based superplasticizers, the steric hindrance allows for a much longer dispersion retention time.

By appropriately modifying the comb-like structure of Polycarboxylate superplasticizers to change the side chain density and length, high water-reducing and high early-strength superplasticizers suitable for precast components can be obtained.

Polycarboxylate superplasticizers can have their molecular structure adjusted and modified as required to achieve performance changes, rather than being modified by simple compounding. This understanding may provide some inspiration for improving our future application technologies.

2. The compatibility of polycarboxylate superplasticizers with cementitious materials

The saturation point of Polycarboxylate superplasticizers varies greatly depending on the type of cement, making it crucial to determine the saturation point for each type of cement. However, if the user specifies a maximum allowable addition of 1.0%, and the selected cement is not well-suited to this dosage, the admixture supplier faces significant challenges, and compounding methods often prove ineffective.

Grade 1 fly ash has good adaptability, while Grade 2 and 3 fly ash are less adaptable in many cases. In these cases, even increasing the polycarboxylate content will not have a significant effect. Often, when a certain type of cement or fly ash does not adapt well to admixtures, and you switch to another admixture but still cannot be completely satisfied, you may eventually have to change the cementitious material.

3. The issue of mud content in sand

When the sand has a high mud content, the water reduction rate of Polycarboxylate superplasticizers will decrease significantly. While naphthalene-based superplasticizers are often addressed by increasing their dosage, Polycarboxylate superplasticizers show little change when the dosage is increased. In many cases, the concrete begins to bleed water before the required fluidity is achieved. At this point, adjusting the sand ratio, increasing the air content, or adding a thickener will not be very effective. The best solution is to reduce the mud content.

4. Irrigation issues

Polycarboxylate superplasticizers often retain some surface-active components that reduce surface tension during the production process, thus giving them a certain degree of air-entraining properties. These active components differ from those in traditional air-entraining agents. Because the production process of air-entraining agents takes into account the necessary conditions for generating stable, fine, and closed air bubbles, these effective components are added to the air-entraining agent. This ensures that the air bubbles introduced into the concrete meet the air content requirements without adversely affecting properties such as strength.

During the production process, Polycarboxylate superplasticizers can sometimes have an air content as high as 8%. Direct application of such agents can negatively impact strength. Therefore, the current practice is to first defoam and then entrain the air. Defoamer manufacturers can usually provide these, while the air-entraining agent sometimes needs to be selected by the user.

5. Issues regarding the dosage of polycarboxylate superplasticizer

Polycarboxylate superplasticizers have low dosage, high water reduction rate, and good slump retention, but the following problems also arise in their application:

(1) The dosage is very sensitive when the water-cement ratio is small, and it shows a higher water reduction rate. However, when the water-cement ratio is large (above 0.4), the water reduction rate and its changes are not so obvious. This may be related to the mechanism of action of Polycarboxylate superplasticizers . Its dispersion and retention effect lies in the steric hindrance effect formed by the molecular structure. When the water-cement ratio is large, there is already enough water molecules to separate the cement dispersion system. Therefore, the steric hindrance effect of polycarboxylate molecules is naturally small.

(2) The effect of dosage is more pronounced when the amount of cementitious material is large. Under the same conditions, the water reduction effect when the total amount of cementitious material is <300 kg/m3 is less than that when it is >400 kg/m3. Moreover, there is a synergistic effect when the water-cement ratio is high and the amount of cementitious material is small.

Polycarboxylate superplasticizers are designed for high-performance concrete, so their performance and price are more suitable for application in high-performance concrete.

6. Regarding the formulation of polycarboxylate superplasticizers

Polycarboxylate superplasticizers cannot be mixed with naphthalene-based superplasticizers. If both superplasticizers are used in the same equipment, incomplete cleaning can also cause adverse effects. Therefore, it is now generally recommended that polycarboxylate superplasticizers be used in a separate equipment.

Based on current usage, air-entraining agents exhibit good compatibility with Polycarboxylate superplasticizers. This is largely due to the low dosage of air-entraining agents, which allows them to be "miscible" with Polycarboxylate superplasticizers, thus enabling further compatibility and complementarity. Sodium gluconate in retarders also shows good compatibility, but poor compatibility with other inorganic salt admixtures, making compounding difficult.

7. Regarding the pH value of polycarboxylate superplasticizers

Polycarboxylate superplasticizers have a lower pH value than other high-efficiency superplasticizers, some even as low as 6-7. Therefore, they must be stored in fiberglass or plastic containers and cannot be stored in metal containers for extended periods. Prolonged acidic exposure will cause the Polycarboxylate superplasticizers to deteriorate, and the long-term acidic corrosion will affect the lifespan of the metal containers and the safety of the storage and transportation system.
