Concrete admixtures are not a panacea

About

	Our Company
	News

Products
	Concrete Admixtures

Mining Chemicals

Personal Care Ingredients

	Agricultural Fertilizers
	Food Additives
	Water Treatment Chemicals
	Other Chemicals

Findings
	New Product Notice
	Research Progress

Contact

info@surechemical.com

86-311-85697096

Concrete admixtures are not a panacea

_________________________________________________________________________

While admixtures are a core technology for achieving high performance in modern concrete, enabling precise control over its workability and durability, they are not a panacea. Their effectiveness is limited by the quality of the base materials, precise mix design, and strict construction control.

1. The functional essence of admixtures

Admixtures are substances added during the concrete mixing process to improve the performance of concrete. Their core function is to "improve" rather than "disrupt" the inherent properties of concrete. This "improving" rather than "disruptive" functional positioning determines that they cannot break through the physicochemical laws of the material itself.

(1) Work-related adjustment

Water-reducing agents (especially polycarboxylate-based high-efficiency water-reducing agents) are used to adjust the workability of concrete. Their function is to improve the workability of the concrete mixture by releasing the trapped free water. The use of admixtures depends on the quality requirements of the raw materials. If the fine aggregate has a mud content >3%, the mud particles will preferentially adsorb the Water-reducing agents, resulting in "insufficient effective water-reducing components".

(2) Intensity development regulation

Accelerators and retarders regulate the cement hydration rate. Accelerators can increase the strength of concrete by 30% to 50% in one day by accelerating the hydration reaction of tricalcium silicate (C3S ) . Retarders (such as sodium gluconate) meet the needs of concrete construction in summer by inhibiting the rapid hydration of tricalcium aluminate (C3A).

(3) Improved durability

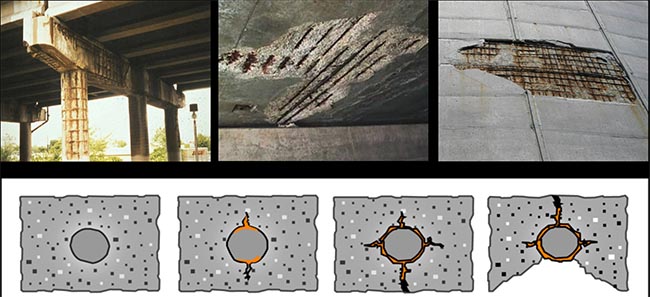

Functional admixtures such as air-entraining agents, corrosion inhibitors, and crack-resistant agents act as a "protective layer" to improve the durability of concrete. Air-entraining agents, by introducing closed air bubbles with a diameter of 0.02–0.2 mm, can increase the frost resistance grade of concrete from F100 to F300, making them suitable for road and bridge projects in frigid regions such as Northeast and Northwest China. Corrosion inhibitors (such as amino alcohol-based corrosion inhibitors) form a passivation film on the surface of reinforcing steel, inhibiting the electrochemical reaction between chloride ions and the steel, thus reducing the corrosion rate of the steel by 60%–80%. However, improvements in durability cannot overcome the dual limitations of "structural design defects" and "extreme environmental erosion." If the protective layer thickness of the concrete in bridge bearings is only 20 mm (the specification requires ≥30 mm), even with the addition of corrosion inhibitors, chloride ions can still quickly penetrate to the surface of the reinforcing steel through a "short path," leading to corrosion.

2. Why admixtures are not a panacea

The effectiveness of admixtures always depends on the synergy of "raw materials-environment-construction". The absence or imbalance of any single link will lead to the failure of its function or even cause negative effects. This "non-omnipotent" attribute is not a technical defect, but is determined by the multiphase composite characteristics of concrete materials, the uncontrollability of the natural environment, and the standardized requirements of engineering construction.

(1) Substrate compatibility constraints

Concrete is a multiphase composite material composed of cement, aggregate, water and admixtures. The role of admixtures must be based on the fact that the base material meets the quality standards. Its essence is to "optimize the performance of qualified base materials" rather than "correct the defects of inferior base materials".
C3A and C3S content in different cements directly determine the adsorption rate and effect of admixtures. If the C3A content in the cement is >8% (such as some fast-hardening and early-strength cements), C3A will quickly combine with the carboxyl groups of polycarboxylate superplasticizers, causing the superplasticizer to "instantaneously fail to adsorb," and the slump loss of concrete over time will exceed 50mm (within 1 hour).
Secondly, the physical properties of aggregates are a constraint. The water absorption, mud content, and particle shape of aggregates directly consume or interfere with the effect of admixtures. If the water absorption rate of aggregates is >3% (such as porous limestone aggregates), they will preferentially absorb free water from the concrete during mixing, leading to a relatively higher concentration of admixtures and potentially causing segregation. In addition, the particle shape of aggregates (such as needle-like and flaky content >15%) will increase the internal friction resistance of concrete, making it difficult to reduce construction difficulty even with the use of water-reducing agents.

(2) Environmental sensitivity

The construction and curing process of concrete takes place in an open natural environment. Factors such as temperature, humidity, and wind speed directly affect the chemical reaction rate of admixtures. This environmental sensitivity is a natural law that admixtures cannot overcome.

Temperature is the most critical influencing variable. Low-temperature environments (<5℃) inhibit cement hydration, thus amplifying the effect of retarder. Conversely, high-temperature environments (>35℃) accelerate cement hydration, causing accelerators to act excessively.

The synergistic effect of humidity and wind speed is also significant. In dry, windy conditions (wind speed > 5 m/s, relative humidity < 40%), even with the use of water-retaining agents, surface moisture in the concrete will evaporate rapidly, leading to incomplete hydration of the surface cement. Furthermore, high humidity environments (relative humidity > 90%) will delay the drying of the concrete surface; if accelerators are used, this may result in slow surface strength development, affecting subsequent construction.

(3) Construction specifications

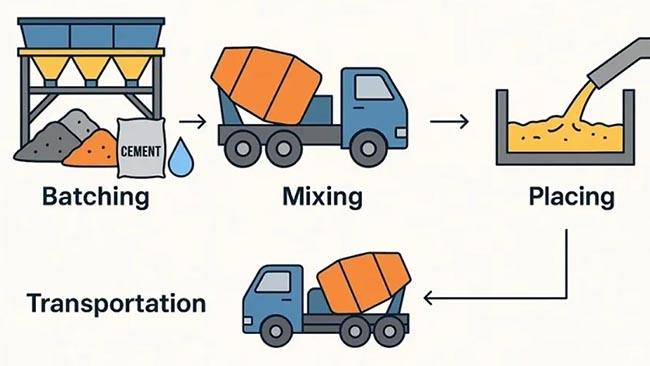

The function of admixtures needs to be realized through a strict construction process (mixing, transportation, pouring and curing). Any operational error in any step will disrupt the balance between the admixture and the substrate, leading to functional failure.

First, there are strict requirements for measurement accuracy. The dosage of admixtures is usually 0.5% to 2.0% of the mass of cementitious materials. If the measurement error exceeds ±10%, it will directly lead to functional abnormalities.

Secondly, there is the requirement for uniformity in mixing and transportation. Insufficient concrete mixing time (<30 seconds) will lead to uneven mixing of admixtures and substrates, resulting in the contradiction of "local over-admixture" and "local lack of admixture". In addition, excessive transportation time (>2 hours) will cause the admixtures to lose its effectiveness, and blindly adding water to adjust it will disrupt the water-cement ratio.

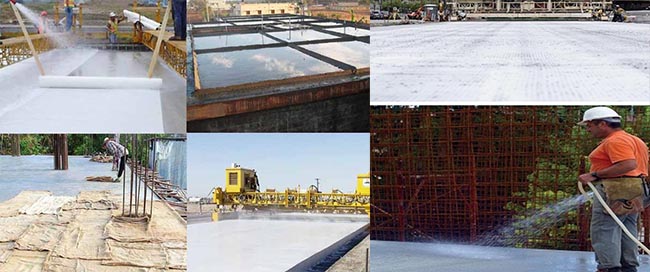

Thirdly, there is the constraint of necessary curing. The strength and durability regulated by admixtures require sufficient curing (keeping the concrete moist and at a suitable temperature) to ensure complete cement hydration. If concrete using accelerators is not covered for curing after pouring, rapid evaporation of moisture will interrupt cement hydration, resulting in high early strength but insufficient later strength development.

3. The Path to Scientific Application of Admixtures

To dispel the "admixture omnipotence" theory, the key lies in establishing a "system synergy" application logic—treating admixtures as "part of the concrete system" rather than "an independent solution," and realizing their reasonable value through full-process management of "substrate control, environmental adaptation, construction specifications, and standard improvement."

(1) Establish a compatibility testing mechanism for "substrate-admixture".

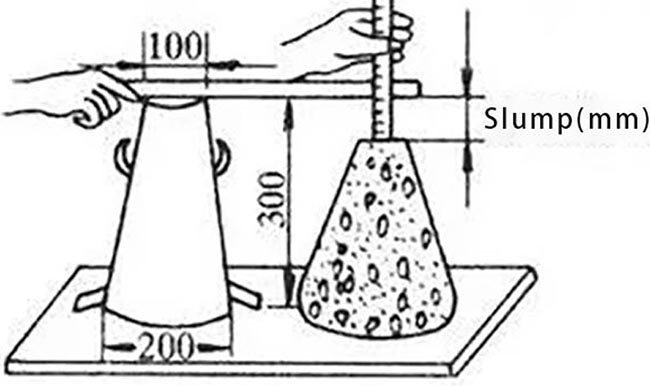

The quality of the base material is fundamental to the effectiveness of admixtures, necessitating a "test first, adapt later" pre-process. First, all raw materials undergo comprehensive testing upon arrival, strictly adhering to GB175-2023 "General Portland Cement" and GB/T14685-2022 "Construction Gravel and Crushed Stone" standards. Testing is conducted on the C3A content and free calcium oxide of the cement, and the mud content, gradation, and water absorption of the aggregates. Substrate materials that fail to meet these standards are resolutely rejected. Second, after each batch of raw materials is changed (e.g., cement brand, aggregate source), concrete trial mixing must be conducted to test slump, loss over time, setting time, and strength development under different admixtures dosages to determine the optimal dosage. Third, for special base materials (such as high-mud-content aggregates or high-C3A cement ), the formula should be adjusted in conjunction with the admixture supplier.

(2) Strengthen the dynamic adjustment of "environment-construction"

Dynamically adjusting the admixture program according to environmental conditions is key to avoiding functional failure.

-Establish an environmental monitoring mechanism. Monitor temperature, humidity, and wind speed in real time before construction. For construction in low-temperature conditions (<5℃), use an early-strength water-reducing agent and cover the concrete with insulation (using flame-retardant insulation blankets). For construction in high-temperature conditions (>35℃), increase the amount of retarder (e.g., increase sodium gluconate content from 0.02% to 0.06%). For construction in windy and dry environments (wind speed >5m/s), add a water-retaining agent and strengthen curing by covering (covering with geotextile within 1 hour after pouring).

-Strict control over the entire construction process. During metering, equipment should be calibrated regularly (once a month) to ensure that the metering error of admixtures is ≤±1%. During mixing, time should be strictly controlled to ensure uniform mixing. During transportation, slump should be monitored in real time. If the loss exceeds 20%, an appropriate amount of water-reducing agent should be added on-site (the amount to be added should be determined through trial mixing, usually 10%–20% of the original amount). Blindly adding water is strictly prohibited. During curing, follow the specifications. Ordinary concrete should be cured for ≥7 days, and concrete with retarders or anti-seepage requirements should be cured for ≥14 days. When using steam curing in winter, the temperature rise rate should be ≤15℃/h, and the cooling rate ≤10℃/h.

(3) Improve the standard system and professional training

To standardize the application of admixtures at the industry level, two key aspects need to be addressed. First, application standards should be refined. Based on existing national standards, specific requirements for substrates (e.g., mud content ≤1.5% for marine engineering aggregates), dosage ranges (e.g., air-entraining agent dosage 0.01%–0.03% in cold regions), environmental compatibility measures (e.g., adjustment coefficient for retarders in high-temperature construction), and quality acceptance indicators (e.g., slump loss over time ≤30%) should be defined for different engineering scenarios (e.g., cold regions, marine environments, and large-volume concrete). Second, professional training should be strengthened. Regular training sessions should be organized for concrete technicians and construction managers, covering the mechanism of admixtures action, substrate compatibility principles, environmental impact patterns, and emergency response plans (e.g., remedial measures for excessively rapid slump loss). Through case studies (e.g., accident analysis of admixture failure due to inferior substrates, and successful project experience in environmental adjustment), practitioners can intuitively understand the application boundaries of admixtures.
