Why Concrete Fails to Meet Strength Requirements-Causes, Symptoms, and Solutions
I. Indicators of Low Concrete Strength
1. Appearance
-Surface dusting: Weak cement paste layer on the surface disintegrates easily under friction or external force, creating a sandy, rough surface.
-Surface cracking: Due to low tensile strength, inadequate-strength concrete cracks more easily from shrinkage, temperature changes, or external loads. Cracks may grow over time.
-Color irregularities: Pale or uneven color may indicate low cement content, incomplete hydration, or poor raw material quality.
2. Mechanical Properties
-Low compressive strength: Measured strength falls below the design requirement, risking early deformation or failure under load.
-Insufficient flexural strength: Especially critical for components like pavements and bridge decks, inadequate flexural strength leads to cracking under service loads.
-Low modulus of elasticity: Weaker concrete deforms more under load, compromising structural stiffness and stability.
3.Durability
-Poor impermeability: High porosity allows moisture and harmful substances to penetrate easily, reducing concrete's service life.
-Low freeze-thaw resistance: In cold climates, internal water expands upon freezing, damaging the structure. Results in surface spalling or scaling.
-Reduced chemical resistance: Weakened cement paste contains less calcium hydroxide, making concrete more vulnerable to acid, alkali, and salt attacks in aggressive environments.
II. Reasons for Concrete strength deficiencies
Concrete strength deficiencies typically stem from issues related to raw materials, mix design, construction practices, and curing methods. Details are as follows:
1. Raw Materials
-Cement: Insufficient cement strength grade, poor quality consistency, or long-term storage leading to moisture absorption and clumping can reduce cement reactivity and weaken concrete strength.

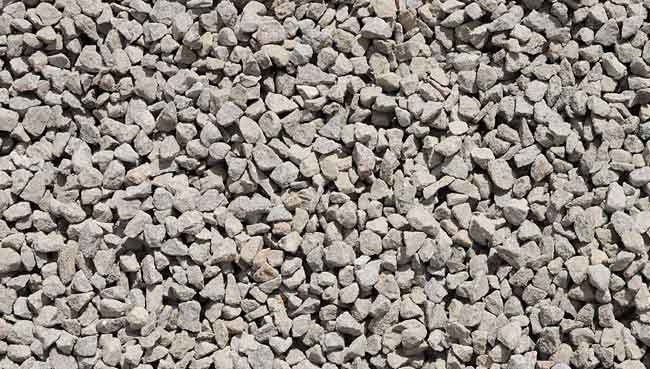

-Aggregates: Excessive clay content weakens the bond between cement paste and aggregates. Poor gradation increases voids in the concrete, both negatively impacting strength.
-Admixtures: Poor-quality admixtures or incorrect dosage-such as low water-reducing rate from a water reducer or excessive setting time from a retarder-can adversely affect strength development.
2. Mix Design
-Water-to-binder ratio (w/b ratio): A high w/b ratio increases porosity in hardened concrete, reducing strength.
-Binder content: Insufficient binder results in inadequate cement paste to coat aggregates and fill voids, thereby compromising strength.
3. Construction Practices
-Mixing: Inconsistent mixing causes uneven distribution of components, affecting uniformity and strength. Incorrect mixing duration-too long or too short-can also impair performance.
-Transport: Segregation and bleeding during transport, if not corrected by remixing, reduce workability and strength.
-Placement: Inadequate compaction during pouring leads to internal voids and honeycombing, reducing density and strength.
-Formwork: Leakage of slurry from formwork leads to mortar loss, resulting in surface defects like sand streaks or honeycombs, weakening the concrete.
4. Curing
-Temperature: Low curing temperatures slow or stop cement hydration. High temperatures can cause rapid moisture loss, leading to cracking and strength reduction.
-Humidity: Insufficient humidity leads to rapid surface drying, incomplete hydration, and limited strength gain.
III. Remedies for Insufficient Concrete Strength
1. Root Cause Analysis
Conduct a thorough investigation into material quality, mix design, construction records, and curing conditions to pinpoint the key issues.
2. Corrective Measures
-Surface repair: For minor deficiencies limited to surface quality, apply a cement or polymer-modified mortar overlay to enhance surface strength and abrasion resistance.

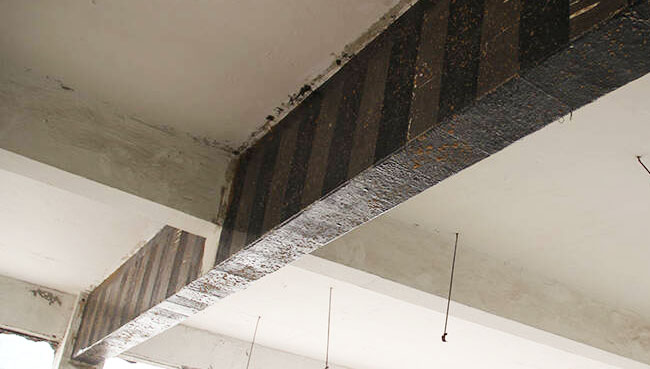

-Structural strengthening: For significant strength shortfalls, use reinforcement techniques such as carbon fiber sheets, steel plate bonding, or adding steel bracing. Carbon fiber sheets, for instance, enhance load capacity using their high tensile strength.
-Concrete replacement: For severely weak localized areas affecting structural safety, remove and recast with high-strength concrete. Ensure strong bonding with existing concrete using interface treatment and dowels.
-Structural unloading: In cases where strength deficiency affects load-bearing capacity but aesthetics or function must be preserved, reduce load by removing non-essential elements or altering use patterns.
IV. How to Improve Concrete Strength
I. Optimize Raw Materials
-Choose high-quality cement: Prefer cement with high grade, good reactivity, and stable quality, such as Portland or ordinary Portland cement.
-Use well-graded aggregates: Select coarse aggregates with appropriate size and rough texture; use medium sand; control clay and silt content within limits.
-Add effective admixtures: Use appropriate amounts of water reducers or accelerators. Water reducers enhance workability without increasing water; early strength agents boost hydration.
2. Refine Mix Design
-Lower w/b ratio: Reduce w/b ratio as much as possible while maintaining workability. Lower ratios significantly improve strength.
-Proper binder dosage: Increase binder content based on strength and workability requirements—but avoid excessive cement, which can lead to shrinkage.
3. Improve Construction Techniques
-Ensure uniform mixing: Use forced mixers with controlled time and speed to ensure even distribution and full cement hydration.
-Compact thoroughly: Use suitable vibrators—like immersion or plate types—and vibrate adequately to avoid under- or over-vibration, ensuring high density.
-Control construction temperature: In hot weather, use chilled water or cool aggregates; in cold conditions, insulate or preheat water/materials to maintain optimal curing temperature.
4. Strengthen Curing Management

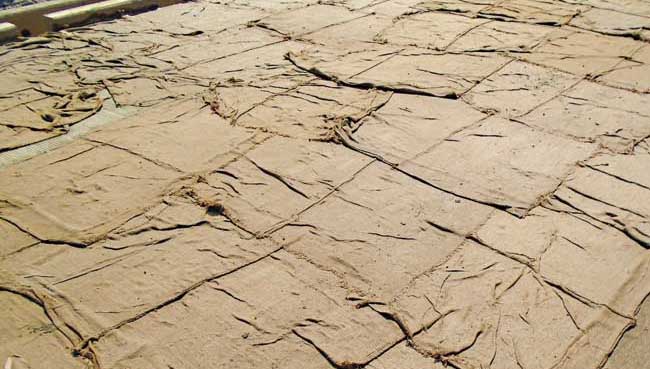

-Keep concrete moist: Start curing promptly after placement using plastic sheets, wet burlap, or curing compounds to prevent early moisture loss.
-Adequate curing duration: Follow recommended durations based on cement type. Ordinary Portland cement concrete requires at least 7 days; extend for mass or waterproof concrete.
V. Conclusion
Addressing low concrete strength demands a thorough, professional approach. From source analysis to tailored repair methods, and from material selection to curing practices, every step must align with industry standards to ensure safety, performance, and durability. Consult structural engineers or specialists when needed to ensure the best outcomes.
