Causes and preventive measures for concrete strength not meeting standards
I. Reasons why concrete strength does not meet requirements

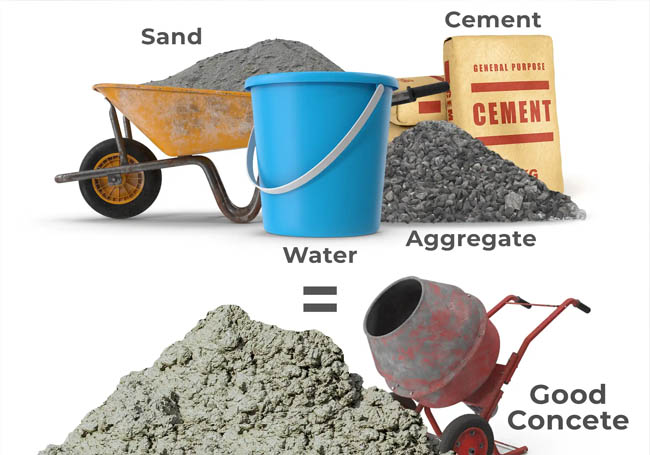

1. Raw materials
- Cement quality issues: Insufficient cement strength grade, expired cement, dampness and agglomeration will reduce cement activity and affect concrete strength.
- Aggregate problems: Excessive mud and mud content in aggregates will reduce the bonding strength between aggregates and cement paste; poor aggregate grading will increase the porosity of concrete; too fine aggregate or too small coarse aggregate particle size will increase the amount of cement slurry and affect strength.
- Impact of water: Using contaminated water, such as water containing harmful substances such as acid, alkali, and salt, will affect the hydration reaction of cement and reduce the strength of concrete.
-Admixture problems: Admixture quality is unqualified, performance is unstable, or dosage is inaccurate. For example, excessive dosage of water reducer may cause concrete segregation and affect strength.
2. Mixing ratio
- Improper water-cement ratio: If the water-cement ratio is too large, the concrete mixture will be too thin and soft, and the porosity will increase and the strength will decrease after hardening; if the water-cement ratio is too small, the concrete mixture will have poor fluidity and be difficult to vibrate and compact, which will also affect the strength.
- Insufficient cement usage: Cement is the key material that provides strength to concrete, and insufficient usage will result in insufficient strength.
- Unreasonable sand ratio: If the sand ratio is too large or too small, the workability of the concrete mixture will deteriorate and affect the density and strength of the concrete.
3. Construction
- Insufficient mixing: If the concrete mixing time is too short, the materials will be mixed unevenly, the cement will not be fully hydrated, and the strength will be affected.
-Problems during transportation: If the transportation time is too long or no water conservation measures are taken, the water in the concrete mixture will evaporate, resulting in slump loss, segregation and water seepage , and reduced strength.
- Pouring and vibration are not dense: If the concrete is not poured in layers, the vibration time is insufficient or the vibration is excessive, defects such as honeycombs, rough surfaces, and holes will appear inside the concrete, reducing its strength.
-Improper curing: Insufficient curing time, curing temperature that is too low or too high, insufficient humidity, etc. will affect the hydration reaction of cement, resulting in slow growth of concrete strength or failure to meet requirements.
4. Other aspects
-Template issues: If the formwork is not tightly spliced and the support is not firm, it will lead to leakage, deformation and other problems during the concrete pouring process, affecting the size and appearance quality of the concrete, and thus affecting its strength.
-Environmental factors: Construction under harsh environmental conditions such as low temperature, high temperature, and high humidity will have an adverse effect on the strength of concrete if appropriate protective measures are not taken.
- Experimental error:
During the preparation, maintenance and testing of concrete specimens, if the operation is not standardized or the testing equipment is inaccurate, the test results may not truly reflect the actual strength of the concrete.
II. Preventive measures for concrete strength not meeting the standard
1. Raw material quality control
-Cement: Choose a cement manufacturer with stable quality and good reputation, strictly check the cement's factory certificate, inspection report and other quality certification documents, conduct on-site inspection according to regulations, and strictly prohibit the use of expired, damp, or agglomerated cement.
-Aggregate: Control the mud content and mud block content of coarse and fine aggregates. The mud content of coarse aggregates shall not exceed 1%, and the mud block content shall not exceed 0.5%; the mud content of fine aggregates shall not exceed 3%, and the mud block content shall not exceed 1%. Select well-graded aggregates and regularly inspect the particle gradation of aggregates to ensure that they meet the design requirements.

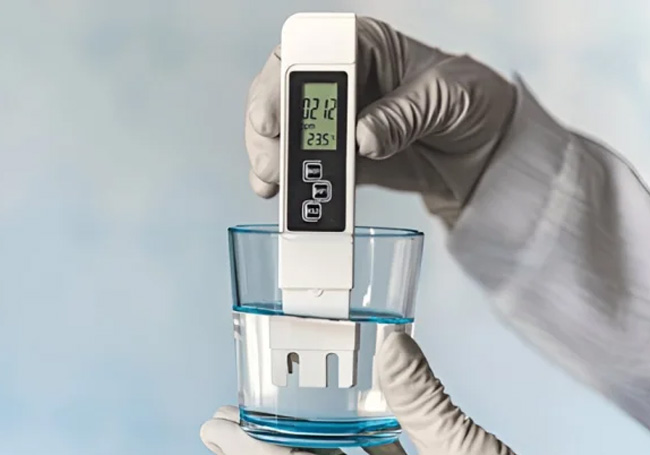

Water: Drinking water is preferred. When other water sources are used, water quality tests should be carried out to ensure that the water does not contain harmful substances that affect the cement hydration reaction.
-Admixtures: Select admixtures with reliable quality and stable performance, strictly control the dosage of admixtures, and determine the optimal dosage through experiments based on the performance requirements of concrete and construction conditions.
2. Mix ratio design and management
-Design a reasonable mix ratio: Determine the reasonable mix ratio through tests based on factors such as the strength grade of concrete, durability requirements, construction conditions, etc. On the premise of meeting workability, try to reduce the water-cement ratio and improve the strength of concrete.
-Strictly control the implementation of mix ratio: Strengthen the management of concrete mixing plants to ensure accurate measurement of various raw materials and control the measurement error within the specified range. The measurement error of cement, admixtures and admixtures shall not exceed ±1%, the measurement error of coarse and fine aggregates shall not exceed ±2%, and the measurement error of water shall not exceed ±1%.
3. Construction process control
-Mixing: According to the type and performance of the mixer, reasonably determine the mixing time to ensure that the concrete mixture is mixed evenly. Generally speaking, the mixing time of a forced mixer is not less than 90s, and the mixing time of a self-falling mixer is not less than 120s.
-Transportation: Choose appropriate transportation equipment to ensure that concrete does not segregate, bleed , or lose too much slump during transportation. The transportation time should be reasonably determined based on the initial setting time of the concrete and the transportation distance. When the transportation time is long, appropriate water conservation measures should be taken.
-Pouring: Before pouring, the debris and water in the formwork should be cleaned, and the size, position, verticality and support of the formwork should be checked to ensure that the formwork meets the requirements. Concrete should be poured in layers, and the thickness of each layer should be determined according to the performance of the vibrating equipment and the fluidity of the concrete, generally not exceeding 500mm.

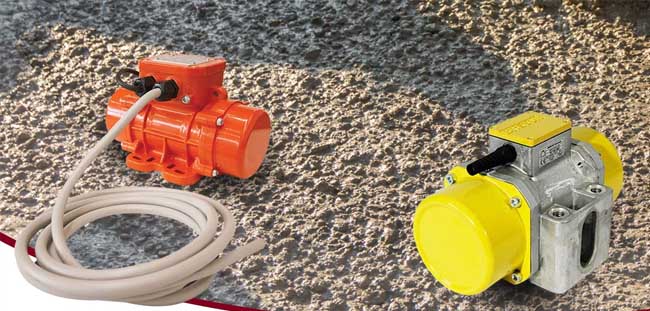

-Vibration: Use appropriate vibrating equipment, such as insert vibrators, flat plate vibrators, etc., and vibrate according to the correct vibrating method to ensure that the concrete is vibrated and compacted. The vibration time should be determined based on the slump of the concrete and the performance of the vibration equipment. Generally, it is based on the time when the concrete surface no longer sinks significantly, no bubbles appear, and the surface is no longer slurry.
4. Maintenance and management
-Moisturizing maintenance: After the concrete is poured, moisturizing maintenance should be carried out in time to prevent the concrete surface from losing water and drying out. For concrete made of silicate cement, ordinary silicate cement or slag silicate cement, the curing time shall be no less than 7 days. For impermeable concrete and concrete with strength grade C60 and above, the curing time shall be no less than 14 days.
-Temperature control: When constructing in low temperature seasons, insulation measures should be taken to prevent the concrete from freezing; when constructing in high temperature seasons, cooling measures should be taken to control the pouring temperature of the concrete.
5. Quality inspection and testing
-Specimen preparation and curing: Concrete specimens shall be prepared according to the prescribed frequency and method to ensure the representativeness of the specimens. The specimens shall be cured under standard conditions, i.e., the temperature shall be 20±2℃ and the relative humidity shall be above 95%.

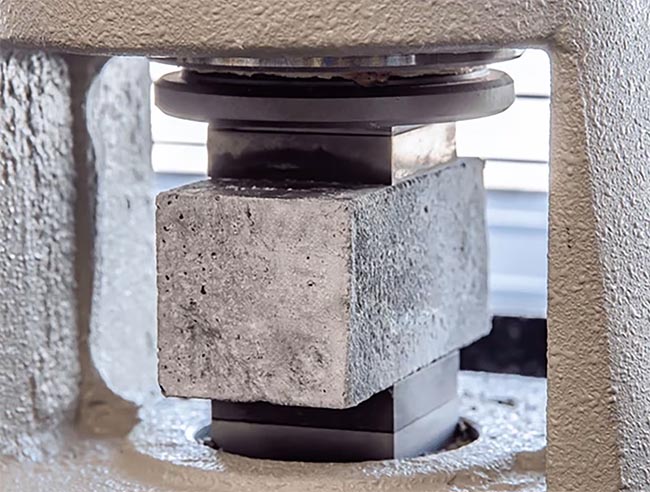

-Strength test: Conduct strength test on concrete specimens in time, and judge whether the strength of concrete meets the design requirements based on the test results. If abnormal concrete strength is found, timely measures should be taken to deal with it.
Through the above measures, we can effectively prevent the problem of concrete strength not meeting the standard and ensure the quality of concrete engineering. In actual construction, we should strictly implement relevant specifications and standards according to the specific situation, strengthen construction management, and ensure the smooth progress of concrete engineering.
